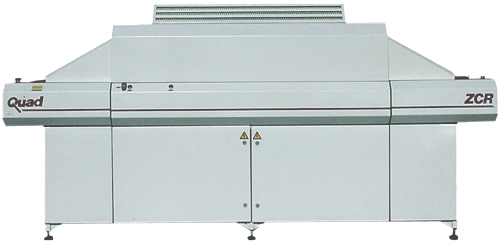

Quad ZCR Reflow Oven

The Quad ZCR features a passive pre-heat section and an integrated thermal profiling system to ensure consistent SMT reflow profiling board after board. The oven's full forced convection heating technology eliminates all component hot spots, shadowing, and color sensitivity problems associated with infrared dominated heating systems. All Quad reflow ovens feature high mass heating modules, automatic start up with zonal power up, closed loop conveyor speed control, four channel PCB thermal profiling, automatic data logging, pneumatic powered hood lift, and powered exhaust system.

Quad ZCR Reflow Oven Features:

• Computer system with easy-to-use graphic display operating software
• A passive pre-heat section and an integrated thermal profiling system
• Computer controlled rail width adjustment for edge rail and combination belt/rail oven configurations
• Multi level password protection
• Closed loop conveyor speed control
• Four channel PCB thermal profiling.
