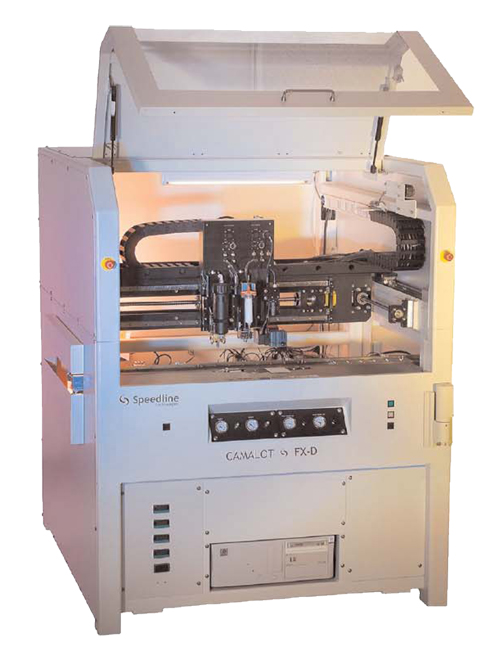

Camalot FXD Dispenser

The Camalot FX-D Glue Dispenser, is a revolutionary new dispensing system that features a unique “plug and play” system design. Configurable as stand alone or in-line, this new platform provides a lower cost dispenser with mid-to-high end performance. The FX-D employs a combination of industry proven technologies in an easy-to-use, configurable, and reliable dispensing system. Controlled using Benchmark software within the Windows® XP environment facilitates quick, “hassle free” program creation and fast product changeovers.

Camalot FXD Dispenser Features:

A lser or mechanical probe (LVDT) is available to sense product height prior to dispensing.
Closed-loop weighing process allows measurement of both global and actual dispense patterns for maximum accuracy. Changes in material viscosity are controlled with automatic compensation.
Dual head configurability allows dispensing of different materials within one process. Both Z-axes are independently controlled, facilitating both high positional accuracy and fast axis movement.
Vision system accurately aligns dispense patterns to any fiducials. For underfill, vision pinpoints component edges ensuring a parallel dispense path
Optional transport system features up to 3 conveyor zones supporting contact or non-contact heat chucks or SMT edge clamps. Unique pipeline mode reduces transfer time upto 50%

Rebuilt:
