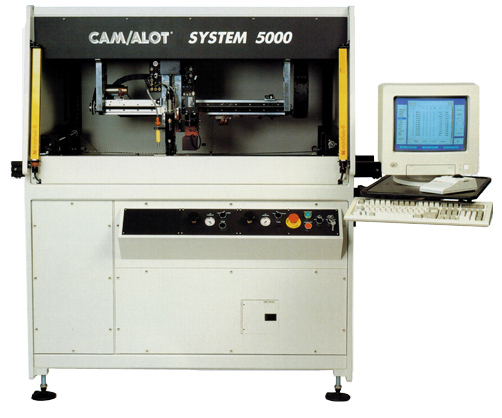

Camalot 5000 Liquid Dispenser

The CAM/ALOT 5000 System provides high-speed adhesive or solder paste dispensing for applications involving large boards or mulit-up panels. Being known as the "work horse" of the industry, the CAM/ALOT 5000 utilizes rotary positive displacement pump technology for dependable high-speed dispensing, and lead screw drives on all three axes.

• specs
• |
• Camalot dispense areas

Camalot 5000 Liquid Dispenser Features:

• 25,000 dots per hour for 50 mil pitch solder paste
• Compatible with 642 dual-nozzle rotary pump to dispense two materials simultaneously
• 22,000 dots per hour for 3mm pitch SMD epoxy
• Dispensing Area 18" x 18" (450 x 450mm)
• SMEMA compatible for in-line automation integration
• Linear bearing slides for smooth point-to-point movement and input/output zones (buffers) to reduce substrate transport time
