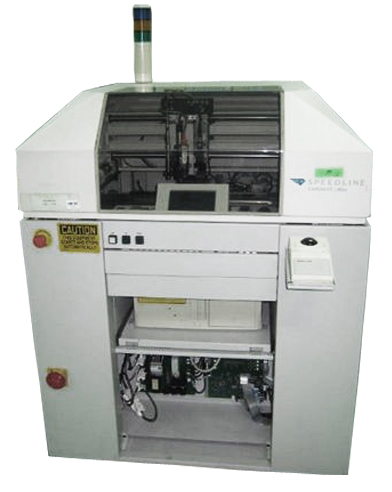

Camalot 2800 Liquid Dispenser

Camalot 2800 Liquid Dispenser

CAMALOT 2800 system is a flexible, mid-range liquid dispensing system for in-line applications in surface mount electronics or industrial assembly in low-to-medium production. Dispense area is 18" x 18" (450mm x 450mm). For electronics assembly, the 2800 is compatible with automated placement machines that place up to 15,000 components per hour. System dispenses up to 15,000 dots per hour of surface mount adhesive or solder paste. The system also dispenses solder mask from a pressure pot or syringe. The 2800 system is also ideal for industrial and automotive applications, such as gasket material, adhesives and industrial epoxies.

Camalot 2800 Liquid Dispenser Features:

  • Field-proven rotary pump technology for repeatability and easy maintenance
  • Compatible with 642 dual-nozzle rotary pump to dispense two materials simultaneously
  • Bulk feeding or syringe dispensing
  • Automatic vision system for precise product alignment
  • Reliable gantry system with 0.004" (100 microns) dot placement accuracy @ 3 Sigma
  • Ergonomic design with built-in LCD flat panel color display with slide-away keyboard and trackball
  • Windows style operating system for user-friendly software interface
  • Acrylic hood for environmental control and operator safety
  • Front service access for easy maintenance
  • Manually adjustable SMEMA conveyor
