Quad QSX-1 Pick and Place

Quad QSX-1 Pick and Place System

High Precision SMT Assembler

The Quad QSX-1 features the industry's most advanced placement technology, setting a new standard in ultra-fine pitch precision. Every aspect of the QSX-1's platform is built to sustain fast, accurate placement in stand-alone or in-line environments. Its rigid frame provides unsurpassed mechanical stability. Unique linear servo direct-dive motors provide an operational smoothness.

To further enhance performance, the QSX-1 combines Quad's high-resolution vision system and patent-pending QuadAlignTM component lead inspection and alignment technology.

Simply put, the QSX-1 is the most accurate, repeatable assembler available. It offer cutting edge technology to meet your current and future SMT production requirements.

Quad QSX-1 Pick and Place System Features:

  • Dual gantry design provides placement rates up to 7,000 cph takt time
  • Handles board sizes from 3.2" x 3" to 19.3" x 25"
  • In-process QuadAlign touchless centering from 0402 through QFP208 and BGA (* Requires Optional ThinPRO Feeder)
  • Quad's innovative P4 (Pick-Pick, Place-Place) head technology
  • Exclusive QSOFT operating software with Windows ease of use
  • Detachable feeder bases and carts for rapid changeover
  • Noncontact linear encoders
  • Programmable transport
  • Optional Intelligent Feeder System for setup verification
  • 0.3mm ultra-fine pitch capable

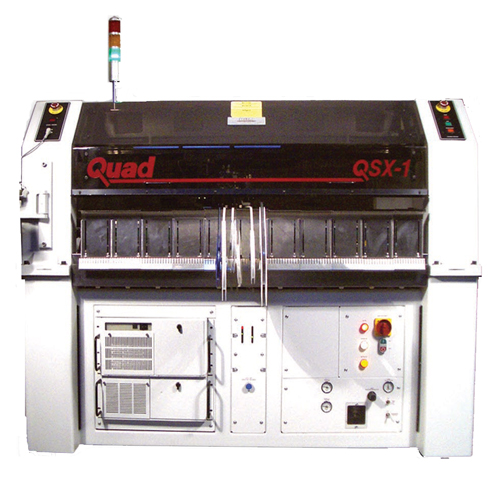

Quad QSX-1 Pick and Place System
