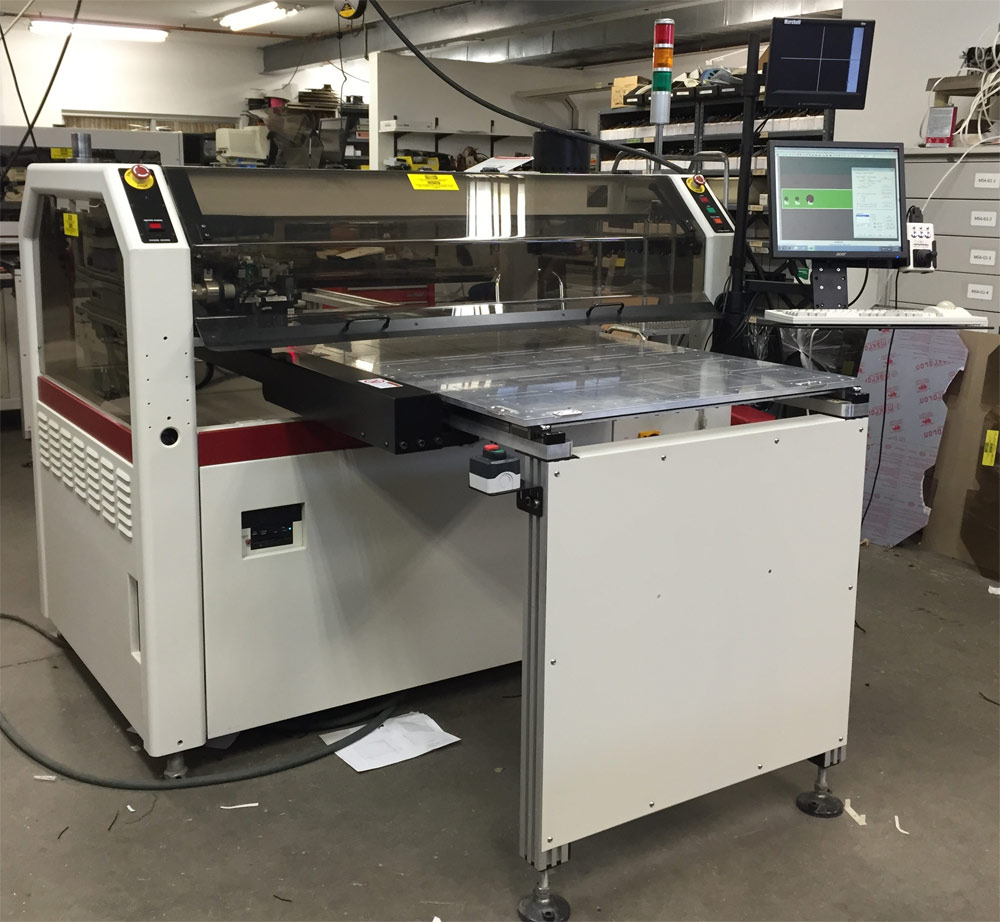

Quad QSV-1 Pick and Place

Quad QSV-1 Pick and Place System

Value Point SMT Assembler

The QSV-1 Plus Assembler is the perfect mainstream solution for automated SMT assembly operations. It combines fine pitch component placement technology, large-board capability, and 117 feeder capacity - all at an affordable price. The QSV-1 Plus features the same high-end touchless in-process optical component alignment technology that is available in all Q-Series assemblers.

The QSV-1 Plus also offers P4 head technology in a single gantry design for throughput rates up to 7,000 cph, as well as the ability to handle components from 0201's through 2.2", and it manages to deliver these high-performance capabilities at a moderate cost. The QSV-1 Plus can stand alone or in-line with your chip shooter. It is the flexible, economical assembler for your SMT production requirements.

* Requires Optional ThinPRO Feeder

Quad QSV-1 Pick and Place System Features:

  • Single gantry design provides placement rates up to 7,000 cph takt time
  • Handles board sizes from 3.2" x 3" to 15" x 18"
  • In-process QuadAlign touchless centering from 0402
  • Quad's innovative P4 (Pick-Pick, Place-Place) head technology
  • Exclusive QSOFT operating software with Windows ease of use
  • Detachable feeder bases and carts for rapid changeover
  • Noncontact linear encoders
  • Programmable transport
  • Optional Intelligent Feeder System for setup verification
  • 0.3mm ultra-fine pitch capable

Quad QSV-1 Pick and Place System
