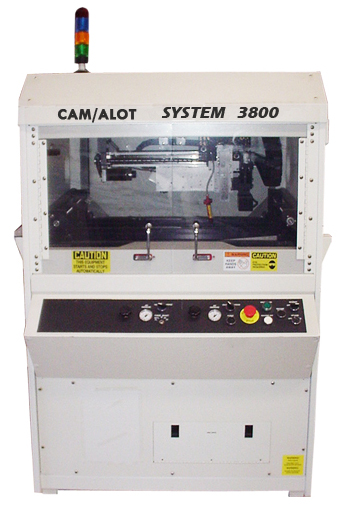

Camalot 3800 Liquid Dispenser

CAMALOT 3800/5000 Systems are in-line or standalone liquid dispensing systems for SMT applications. These systems are the "work horses" of the industry and are part of a family of CAMALOT dispensers with thousands of systems in the field. The 3800/5000 systems are reliable, durable, streamlined in design, and easily adaptable to handle a wide variety of circuit boards and substrates.

The systems utilize ball screws and servo motors (with closed-loop encoders) on all three axes to assure smooth, precise and accurate dispensing with an easy to use enhanced Graphic User Interface. These systems have been designed for the circuit board industry and use a conveyorized system to accommodate circuit boards up to 19" x 19" (483mm x 483mm) (CAMALOT 5000).

• specs
• |
• Camalot dispense areas

Camalot 3800 Liquid Dispenser Features:

• Linear bearing slides for smooth point-to-point movement and input/output zones (buffers) to reduce substrate transport time
• Quick changeover time for customers with several size boards and substrates
• Systems dispense up to 25,000 dots of solder paste or SMD epoxy per hour
• Advanced motion control for independent acceleration and deceleration of the dispensing head
• Large dispense area up to 19" x 19" (483mm x 483mm)* for the 5000 and 14" x 14" (356mm x 356mm)* for the 3800 system
• Handles various size boards and substrates to accommodate a wide variety of customer requirements
• Compact foot print saves valuable floor space
• SMEMA compatible for in-line automation integration
• Surface mount adhesives, solder paste, solder mask or conductive adhesives
