Camalot XyflexPro Modular Dispensing System

Camalot XyflexPro Modular Dispensing System

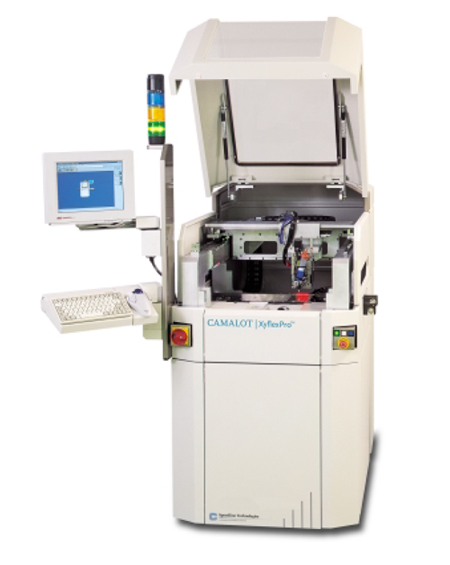

The CAMALOT XyflexProTM Modular Dispensing System brings together many of the advanced dispensing technologies in the converging SMT and semiconductor packaging markets to meet the need for medium- to high-speed dispensing.

Using a traditional x-y gantry, XyflexPro provides a large dispense area with minimal footprint of just 31" (787mm) wide. Its modular design allows two, three or four machines to be installed in-line, all controlled from a single PC-based controller and Windows NTŪ user interface. This makes it easy to optimize line balancing across multiple dispense patterns to achieve high throughput. XyflexPro is capable of dispense speeds of 30,000 to 120,000 dots per hour (application dependent).

XyflexPro Specs   XyflexPro+ Specs

Camalot XyflexPro Modular Dispensing System Features:

  • Compact footprint-Only 31" (787mm) wide (conveyor width)
  • Modular and flexible-Multiple machine link-up allows variable throughput
  • Programmable through one computer and user interface
  • Two versions available-for SMT and semiconductor applications
  • Two platform sizes for flexible board handling
