Matrix Waffle Tray Holder

Matrix Waffle Tray Holder (Latch-In)

Are available in three difference sizes. One-up, Two-up & Five-up tray holders are available for the Q Series product line. Latch-in tray holders are designed to quickly snap into the feeder bank to accommodate components in matrix packaging and be removed when not required.

Matrix Waffle Tray Holder (Fixed Mount)

Are available in one size, Three-up, and mount permanently to the movable transport rail on the Q Series product line. The fixed mount tray holder will not consume any valuable tape feeder space like the latching trays but will limit the Max PCB size to around 12 inches.

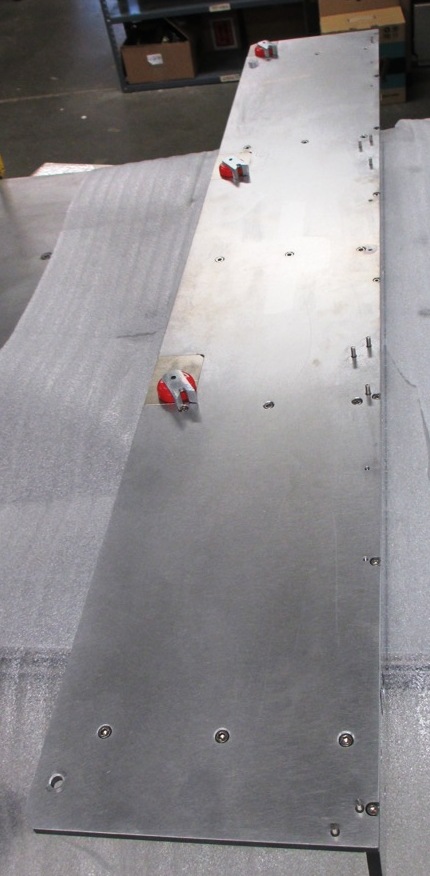

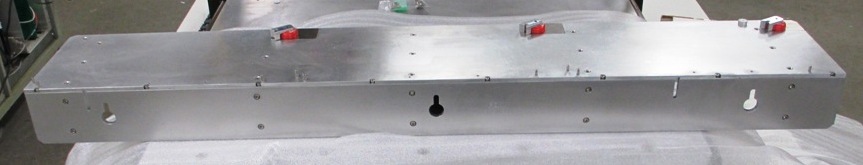

3-Up Matrix Tray (QSV-1 Only)

3-Up matrix tray that mounts to the variable rail. Fits the Quad QSV-1 only.
